WoodAnchor™ sliding nuts

Features & Benefits

• The heart of the WoodAnchor system, these versatile sliding nuts enable new fixturing solutions for woodworkers.

• No expensive aluminum T-track is required.
• WoodAnchor sliding nuts can also be configured as threaded posts, or even linear slides.
• The large clamping surfaces won't crush wooden fixturing slots.
• With a low 18 degrees clamping-surface slope, WoodAnchor sliding nuts won't wedge in their slots, or distort thin fixtures.
• Chamfered corners and rounded edges provide unprecedented smoothness of operation.

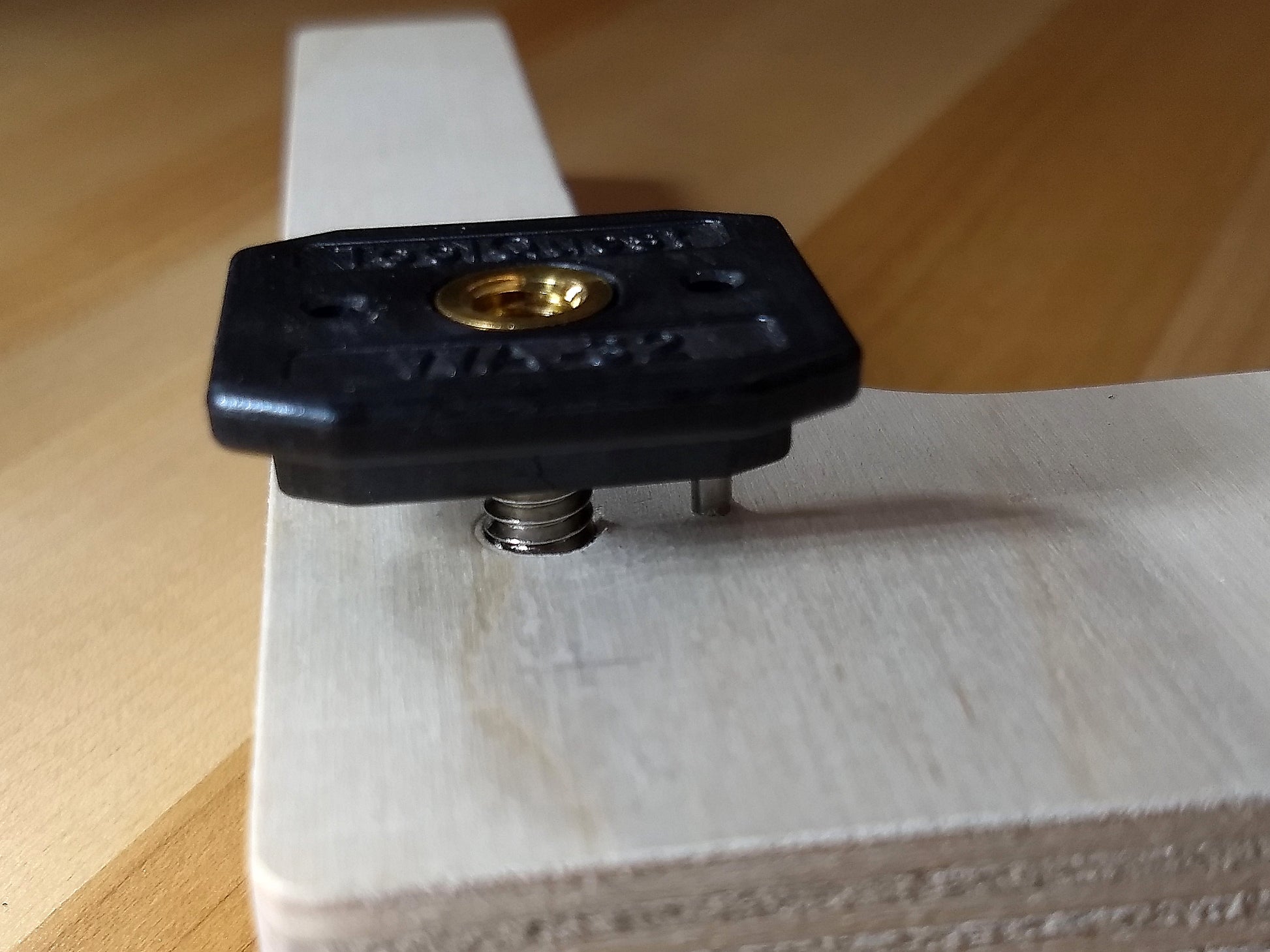

• To keep the sliding nuts properly oriented, alignment pins can be easily installed in removable fixture components.  This greatly improves fixture setup time and convenience.
• WoodAnchor sliding nuts are made in the U.S.A. by ToolQuest, from domestically-sourced components and materials.

Specifications

• ToolQuest part-family number: KT0108
• Load capacity
• Rated working load: 500 lb.
• Ultimate strength: 2,000 lb.
• Warning: WoodAnchor sliding nuts are not rated for lifting.
• Caution: Using WoodAnchor sliding nuts above their rated working load may cause premature failure.
• Body
• Length: 1-1/4” (32 mm)
• Width: 1-5/64” (27.4 mm)
• Height: 3/8” (9.5 mm)
• Material: glass-fiber reinforced, engineering-grade thermoplastic
• Threaded insert
• Thread: ¼”-20 UNC

• Material: brass
• Alignment pin holes
• For pin diameter: 3/32” (2.4 mm)
• Center distance from mounting screw: 25/64” (10 mm)
• Compatible router bit: RB0141

Downloads

• WoodAnchor System Instructions

U.S. and International Patents Pending
