EdgeHugger® ultra-low-profile CNC workholding clamps

Rock-solid hold-down. Less than ¼ inch high.

We designed EdgeHugger® clamps to do one job better than any other clamp on the market: lock your workpiece dead-still to your spoilboard, without ever getting in your way. Each one grips with 250 pounds (110 kg) of hold-down force, so your parts stay put through the longest carve. Yet nothing sits more than a quarter inch (6 mm) above your work, making it easy to keep your bit clear of the clamps.

250 lb hold-down per clamp · less than ¼″ above your work · grips without marring

Shop EdgeHugger® Kits

Every clamp on your bench comes with a catch.

You need to lock a workpiece down, and you already know how this goes. Tall hold-down clamps stand up right in the middle of the action, their lobed knobs looking absolutely eager to wipe out your dust boot or to catch a rapid move. And a metal clamp doesn’t forgive a wrong move: one contact and you’re shopping for end mills again. So you set them wide, oversize the blank to make room, and sacrifice good material and good table space on every single setup.

Tape and CA glue get the clamps off your table and hand you a different job. There’s the cost that never quits, the adhesive that gums up your bits, and the cleanup waiting at the end of every carve. And every so often a corner creeps or lets go partway through — and takes hours of finished work down with it.

So you end up picking your compromise: hold it down hard and try to dodge the clamp clutter, or keep the table clear and never quite trust the grip.

What you actually want is a clamp that holds like you mean it and stays out of your way — low enough to forget, small enough to fit, strong enough to trust.

Let’s address the (baby) elephant in the room.

A clamp that small, holding that well? It’s only natural to be skeptical. The first time most people see an EdgeHugger® clamp, they figure something this little can’t possibly hold a workpiece through a real cut — that it’s fine for a light engraving, maybe, but it’ll creep or pop loose the moment a bit really digs in.

We’d think the same thing. So we’re not going to ask you to take it on faith. Here’s exactly how a quarter-inch tall clamp locks a workpiece down with 250 pounds of force — and why it holds.

Small and strong, for the same reason.

Most CNC router hold-downs are pivot clamps, and a pivot clamp is simply a lever with two ends — a toe that presses down on your workpiece and a heel that braces against the spoilboard. The clamp screw applies force at the pivot point, and the lever divides that force between the heel and toe, with only a fraction of it going to the toe end pressing on your workpiece. Now here's the Catch-22: The only way to make a pivot clamp grip harder is to set the tall knobbed end of the arm on your work — trading away the very clearance you came for.

But an EdgeHugger® clamp has no arm and no lever. The clamp screw is the frame, and the clamp head drives the full force of the screw straight down into the edge of your workpiece — every pound, with nothing siphoned off to brace a heel. The same design choice that makes the clamp small is what lets it bite this hard.

And that extra downforce earns its keep twice over. Bearing down hard is what holds your work securely to the spoilboard, so it can’t lift — and it’s also what keeps it from sliding. The harder a clamp presses, the more friction it builds between your workpiece and the spoilboard, and that friction is what stands up to the sideways shove of the bit. A pivot clamp, surrendering most of its force to brace its own heel, can’t press hard enough to build much of it — which is exactly why work tends to creep under one. An EdgeHugger clamp drives its full force straight down, so it builds the friction to keep your work genuinely put.

To help secure the clamp head as you tighten it, we mold a sandpaper texture right into the clamp pads. They bite into the wood for a sure, positive grip — but they’re fine enough that they won’t mar your workpiece at normal clamping force.

The proof is in the numbers — and the torture tests.

Tightened to a comfortable snug, one EdgeHugger® clamp holds your work down with about 250 pounds of force. Set four around a workpiece and you’ve got a thousand pounds bearing down on it — the weight of a concert grand piano, or four large men, holding your part to the spoilboard.

That’s the rated number, the one we stand behind for everyday work. The clamp itself doesn’t give out until roughly 1,000 pounds — four times its rating — so the force that holds your work is nowhere near the force that would break the clamp. You’re working with a wide margin, not riding the edge of one.

That’s the math. Here’s what it looks like on a real spoilboard. Steve, a retired Boeing engineer and one of our beta testers, came at these clamps with HDPE — the slick plastic that shrugs off tape, glue, and most clamps because almost nothing grips it. EdgeHugger clamps, he told us, are the only workholding method he’s ever found that reliably holds it. When the hardest material to hold stays put, the everyday stuff doesn’t stand a chance of moving.

So no, you’re not trusting a small clamp on faith. You’re trusting more downforce than a pivot clamp can deliver, a four-to-one safety margin, and a slab of HDPE that wouldn’t budge.

The clamp you don’t have to steer around.

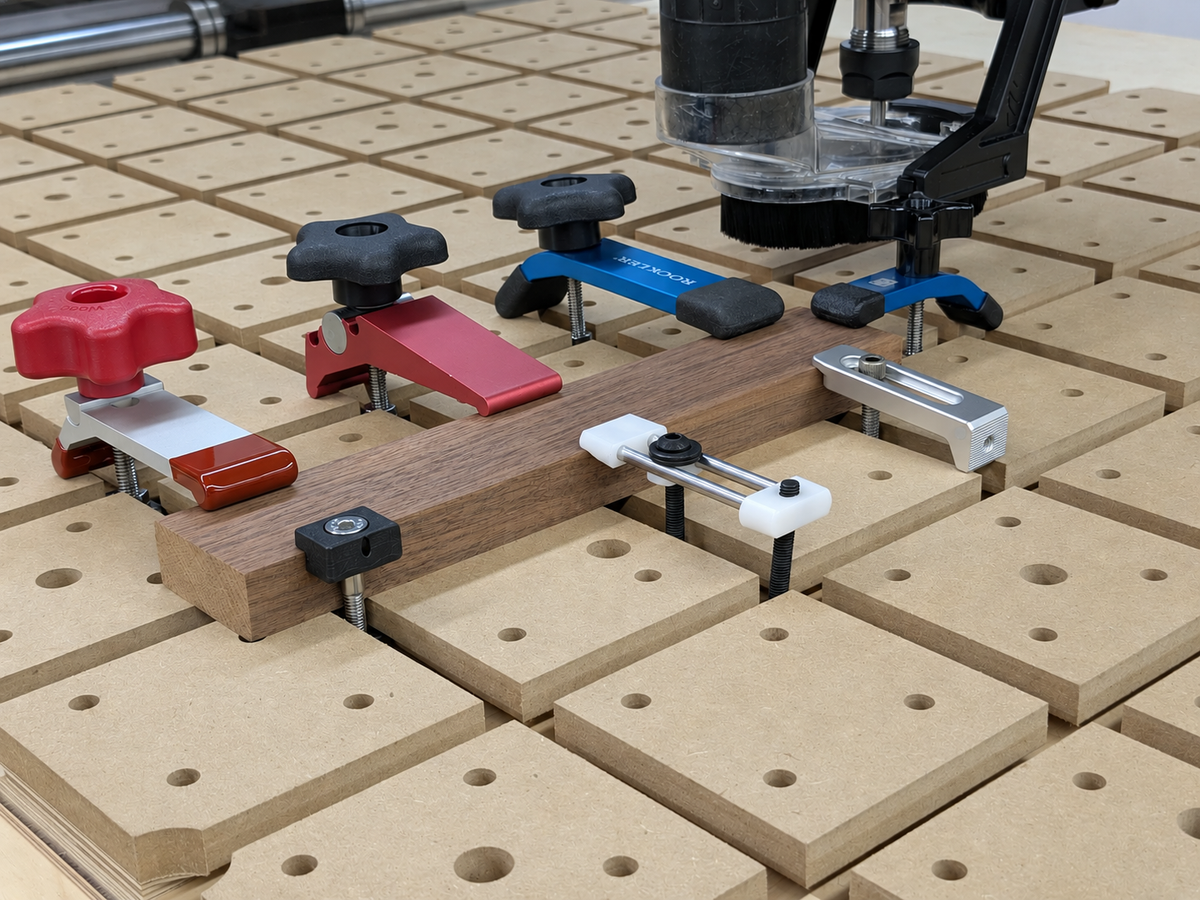

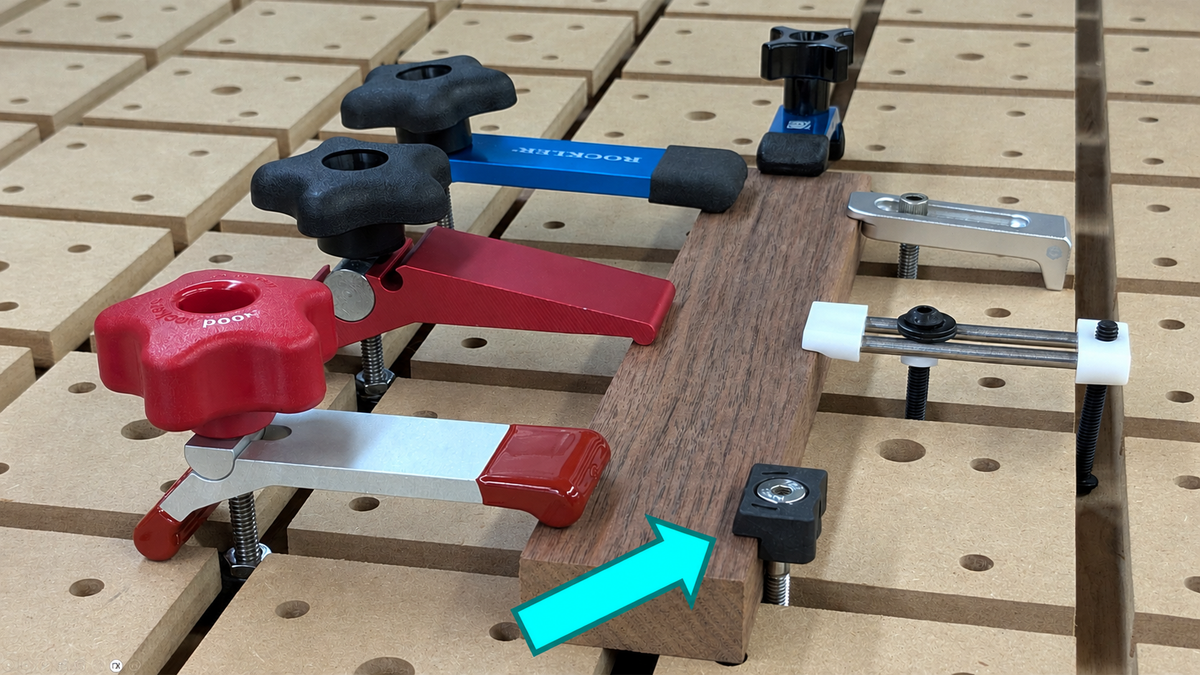

Every clamp on your table is an obstacle your bit and dust boot have to miss. Tall pivot-clamp knobs are the worst offenders — stand one near your toolpath and you’re raising your safe-Z height, dodging it in your layout, or just holding your breath on the rapids. An EdgeHugger® clamp barely breaks the surface. Nothing on it stands more than a quarter inch above your workpiece, so a low safe-Z clears it, and your gantry sails over without drama.

Reaching onto your work, it’s just as modest. The jaw laps over the top edge by no more than a quarter inch, so it claims almost none of your cutting area and stays well clear of all but the most edge-hugging toolpaths. You can nest parts closer and machine nearer the edges than a bulkier clamp would ever allow.

And on the day you do clip one — everyone does, eventually — an EdgeHugger clamp is built to lose that fight gracefully. The head is a tough, glass-fiber-reinforced engineering-grade thermoplastic, not metal, so a glancing hit costs you a scuffed clamp instead of the sickening crunch of a carbide bit letting go — and the price of a new one. And the damage isn’t always so loud: a bit hitting a metal clamp can throw off every cut that follows, ruining the carve even if nothing breaks. Clip a clamp this forgiving and you’re far more likely to walk away with nothing worse than a scuff and a story.

Your dust boot will love EdgeHugger clamps. They sit so low that even the shortest brushes sweep right over them — so you can keep your boot down where it belongs, instead of pulling it to clear a tall pivot clamp.

Reclaim your whole spoilboard.

A bulky clamp doesn’t just get in your bit’s way — it gets in your layout’s way. Every clamp that reaches in from the edge steals workpiece real estate. So you spread things out, oversize your stock to give the clamps something to bite, and watch a surprising amount of good material and good table go to waste.

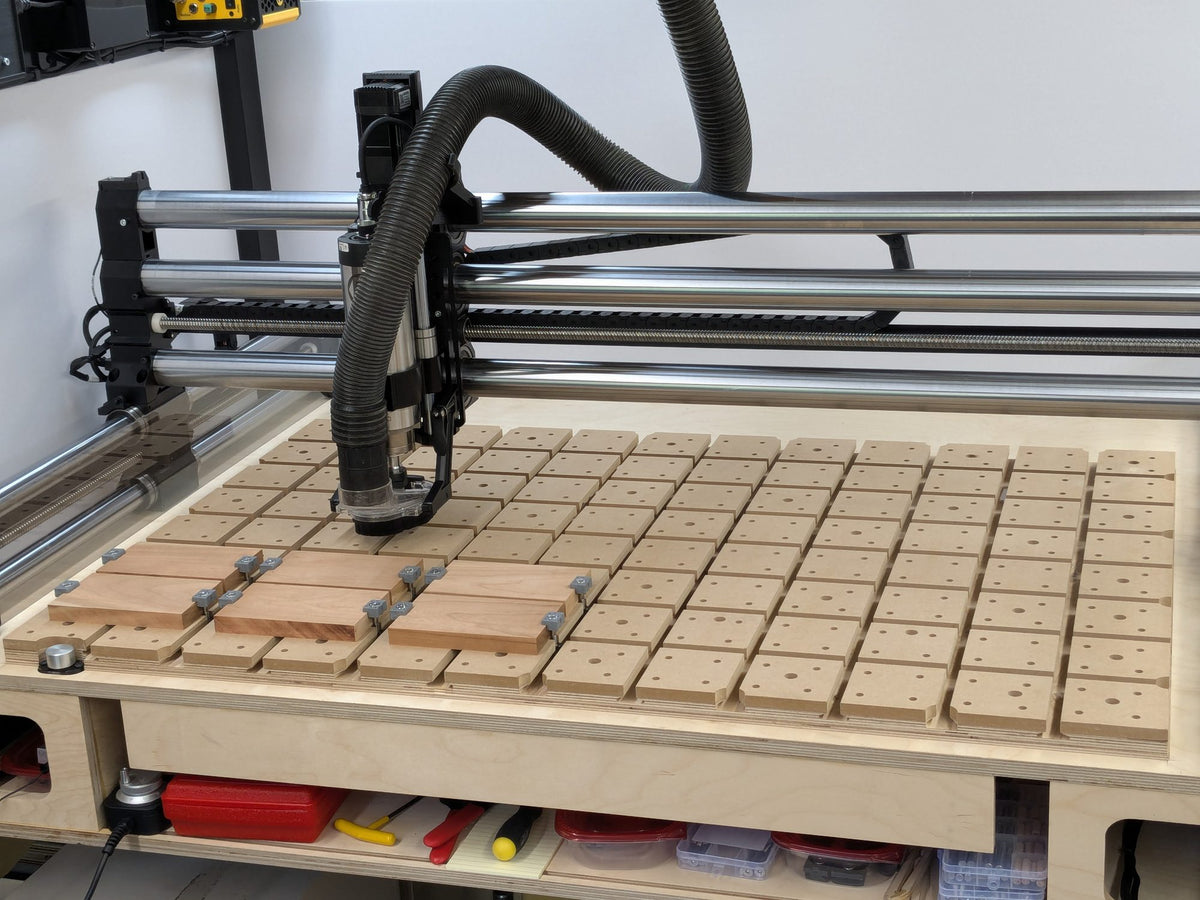

An EdgeHugger® clamp asks for almost nothing. It grips at the very edge of your workpiece and reaches barely half an inch outboard of it, so your parts can sit close together — no large clamp-clearance moat around every piece. Pack your work tight and clamp in the gaps, and you’ll fit noticeably more in a single setup than any bulky hold-down would allow.

That advantage holds even against other low-profile hold-down clamps on the market. Those still plant a body and a footprint out on your spoilboard — and ask you to fuss with an adjustable pivot, a heel screw, or a shim every time you place one. An EdgeHugger clamp has nothing to dial in: set it in the slot, snug one screw, and it’s holding. Smaller on the table, and faster to set — every single time.

And the tight packing pays off all day. More parts per setup means fewer setups, fewer bit changes, and more time actually cutting. Your CNC does more work, and you do less.

Will it work on your machine?

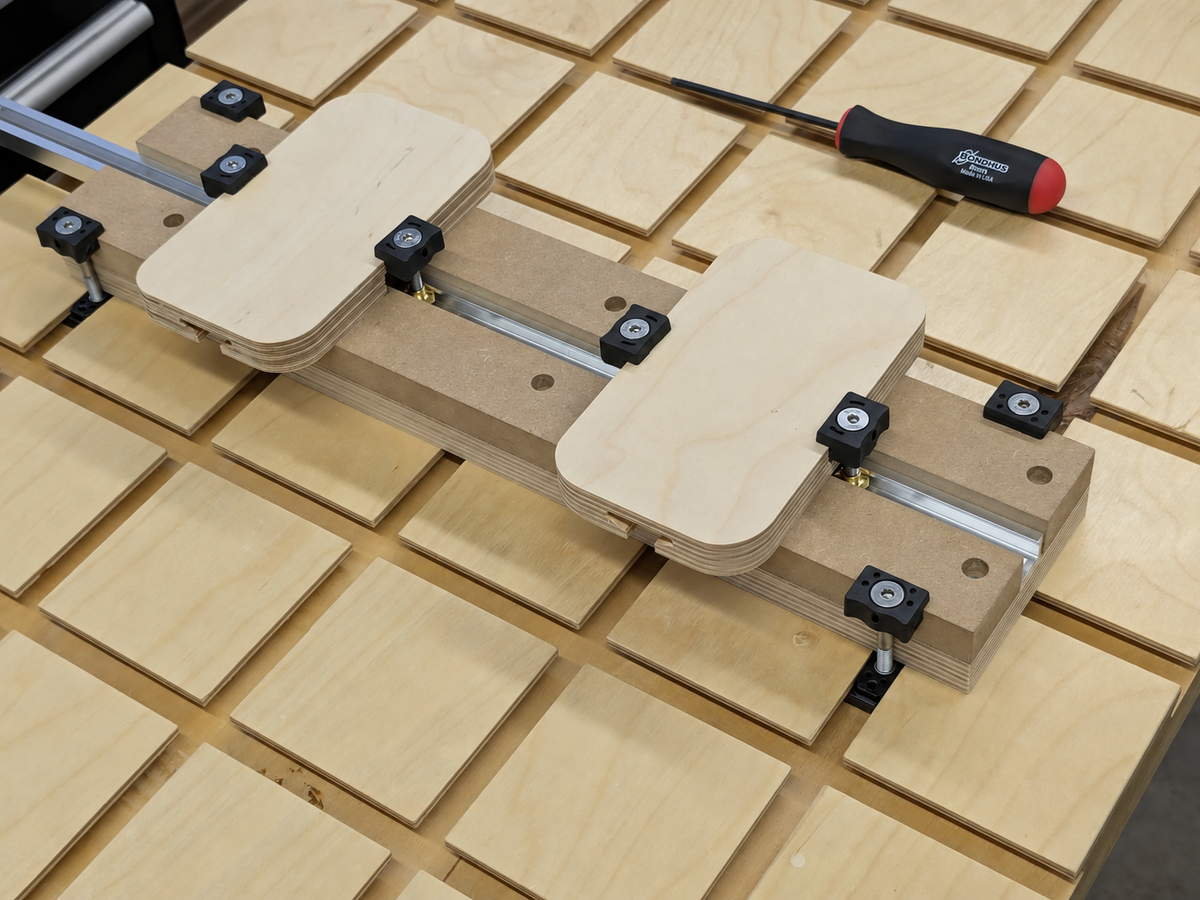

Short answer: if your spoilboard has T-slots, almost certainly yes. An EdgeHugger® clamp works with almost any M6-threaded nut that fits your T-slots and allows adequate clamp-screw travel — whether those are extruded-aluminum T-tracks or the T-slots in an extruded-aluminum CNC machine bed. We offer T-nuts matched to most popular machines, and third-party T-nuts cover many of the rest. So there’s an excellent chance you can put EdgeHugger clamps to work today, on the spoilboard you already own.

One thing to understand up front: an EdgeHugger clamp is a “zero-reach” clamp. Its head seats directly against the workpiece edge, and the clamp pads extend only ¼″ onto the work. That’s one of its real advantages — but it also means the clamp has to mount in a T-slot that intersects the edge you want to hold. Happily, that covers a lot of ground. Parallel T-slots let you clamp a workpiece at multiple points along two opposing sides. But many small parts, whether square, round, or free-form, need only two clamps — which can both be mounted in a single T-slot.

Surface the entire top in one setup.

Flattening a board is where most hold-down clamps let you down. A surfacing bit has to sweep the whole top, and any clamp holding down the work from the top is standing right in its path. So either you switch to an entirely different workholding method, or you surface part of the board, stop, move the clamps onto the finished part, surface the rest, and hope things go as planned.

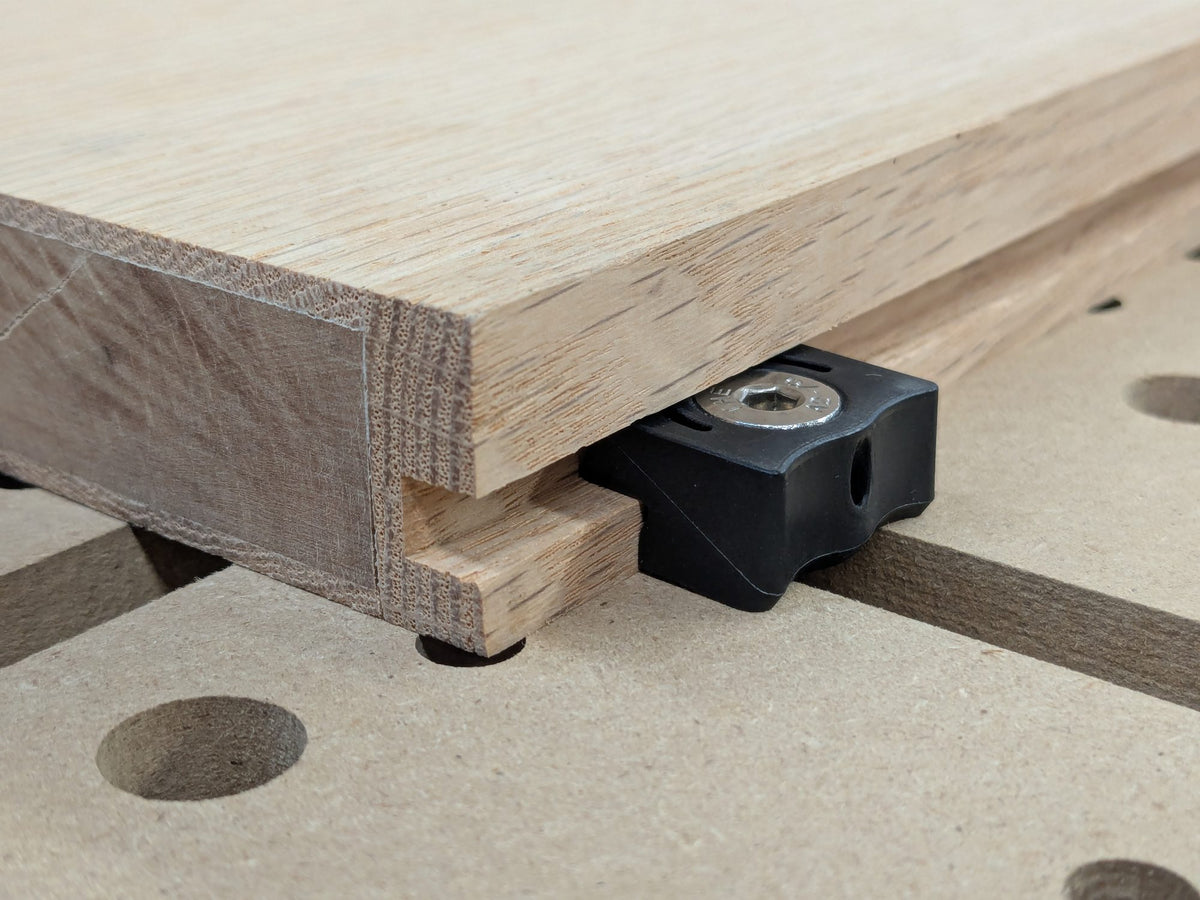

An EdgeHugger® clamp can clear that hurdle by gripping where the cutter never goes. Simply machine a shallow rabbet or groove into the side of your workpiece, and the EdgeHugger clamps can be positioned entirely beneath the top surface of the workpiece. The workpiece can be machined perfectly flat in one setup, the clamps never need to be repositioned, and the work stays locked down the entire time. This method works on stock as thin as ½″.

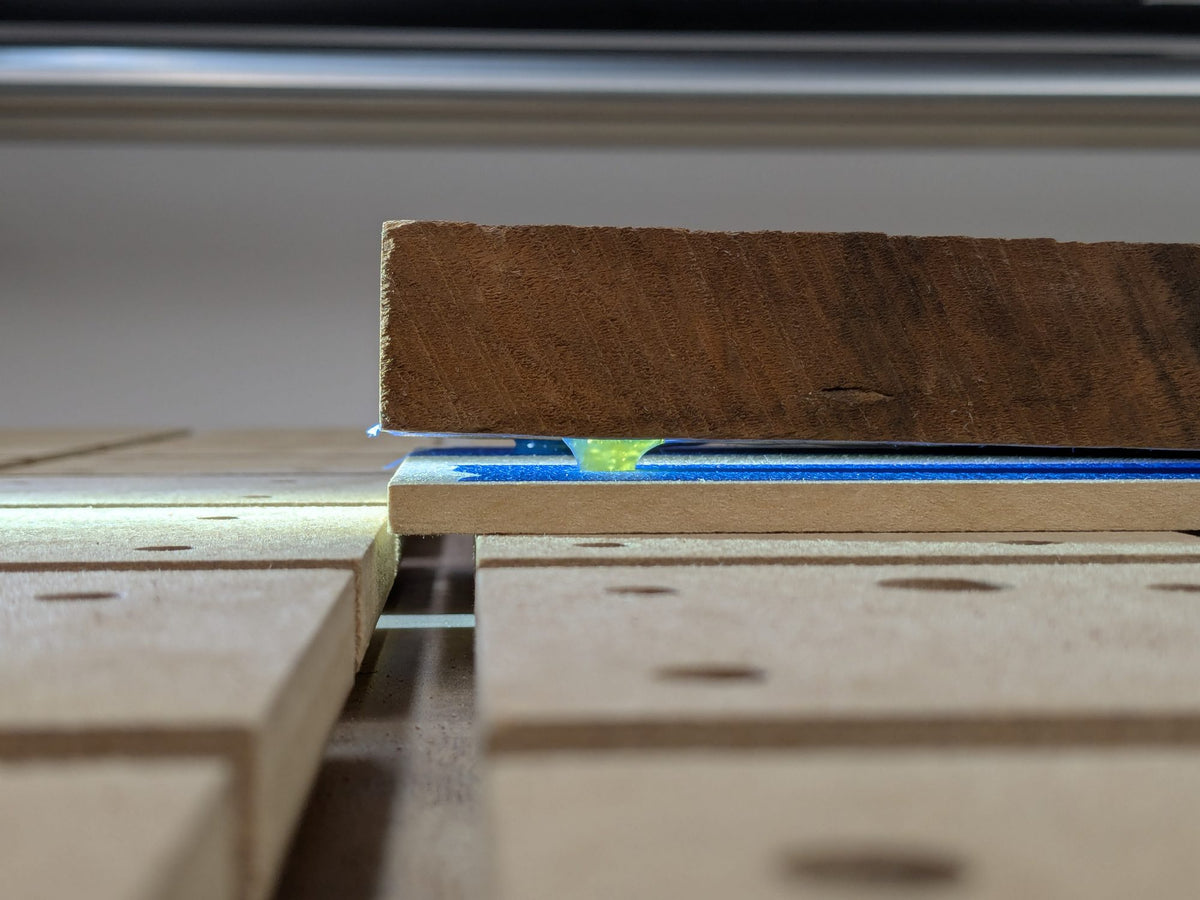

And for a board too rough or bowed to sit flat? Secure it to an EdgeHugger-clamped baseplate with a few dollops of hot glue, and the hot glue will form into support pillars that perfectly shim the gaps and hold the piece dead steady while you flatten the top side.

Miniaturization isn’t cheap.

It’s tempting to look at a clamp this tiny and expect it to have an equally small price. It doesn’t — and the small size is a big reason why. Routinely applying 250 pounds of hold-down force with a frameless clamp head barely an inch across requires an optimized design for each and every element. The head is molded from a glass-fiber-reinforced, engineering-grade thermoplastic that’s challenging to work with, but was chosen for strength properties most plastics can’t touch. The geometry that makes it all work required far more development than any bigger, cruder clamp ever would. So shrinking the clamp didn’t shrink the work behind it — it multiplied it. That engineering is what you’re holding.

For tight control of quality, every EdgeHugger® kit is assembled in the USA. Only the M6 clamp screws, an ISO-standard design, come from the global supply chain. The clamp heads, T-nuts, organizer case, and hex driver are all manufactured in the USA to ToolQuest’s precise specifications.

Now step back, and the math gets easy. These clamps will be used on a machine that cost you thousands, holding work you’ve poured hours of design and runtime into, and saving you some serious setup time. They’re what stands between a well-finished piece and a ruined carve — or expensive broken bits. Against all that, a set of EdgeHugger clamps is the smallest expense line on the page, and the one doing the most to protect the rest.

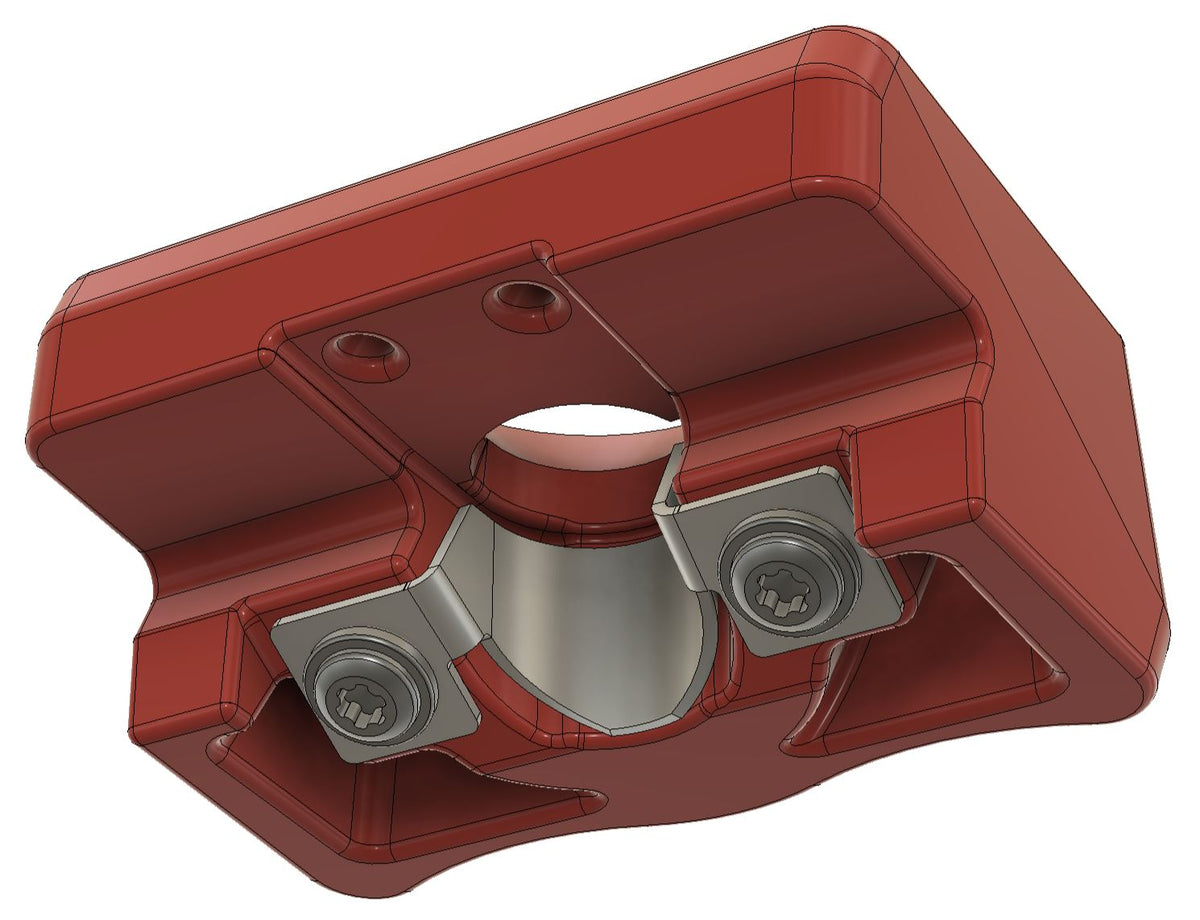

  • Hidden beneath every EdgeHugger® clamp head: a hardened stainless-steel liner clip that takes the bite of the screw threads, so the full clamping load never chews into the molded head.

Treat your work like it’s bolted down — because it is.

You came here doubting a clamp this small could hold. By now you know how it does: the full screw force driven straight down, 250 pounds a clamp, only a quarter inch proud of your workpiece, gentle on your bits and out of your dust boot’s way. It’s the workholding that disappears into the job — until the moment you’d have lost a carve to anything else.

Browse the EdgeHugger® kits to pick a kit and T-nuts that match your machine.

Browse EdgeHugger® Kits

Specifications and kit contents appear on each individual kit page.
