Female knob clamping kit

Female knob clamping kit

Regular price $11.95 USD
Regular price Sale price $11.95 USD
Sale Sold out
Quantity

Features & benefits

  • Our most versatile clamping kit.  Mount tall or variable-height workholding components to a WoodAnchor™ fixturing slot.
  • Offers three distinct configurations, in both 2-1/2" and 4" threaded-stud lengths

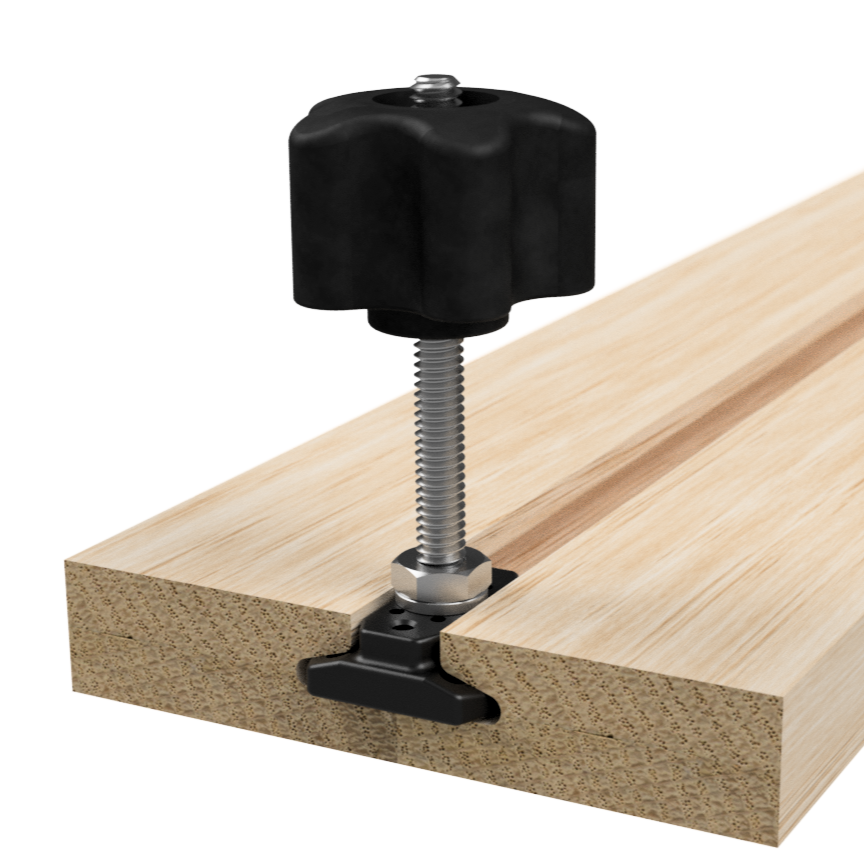

    • Sliding post

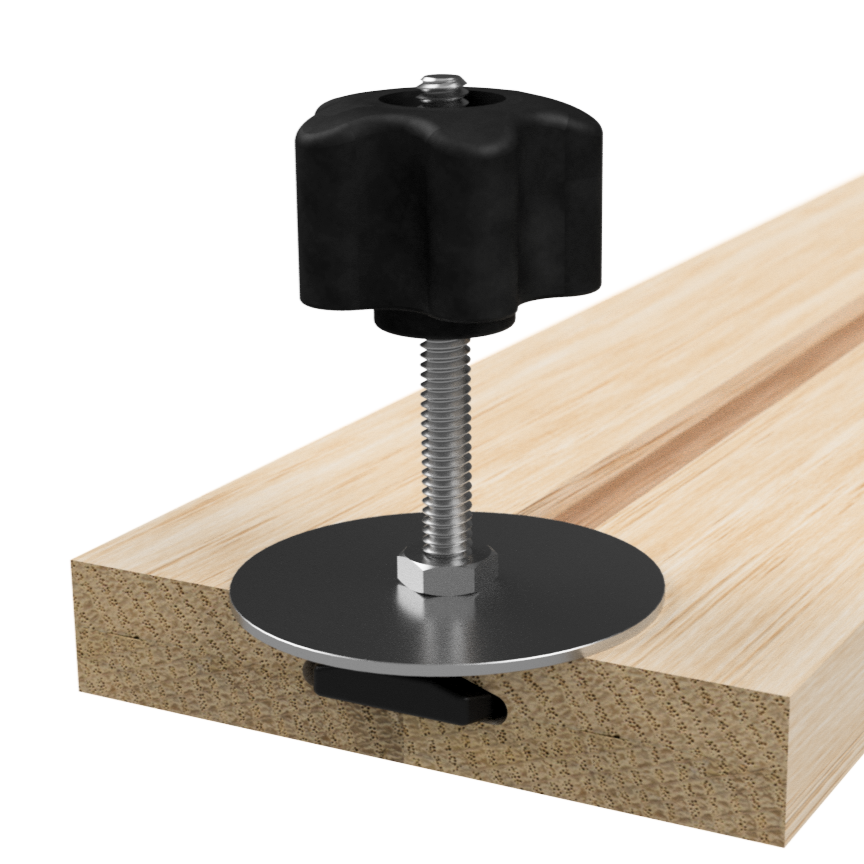

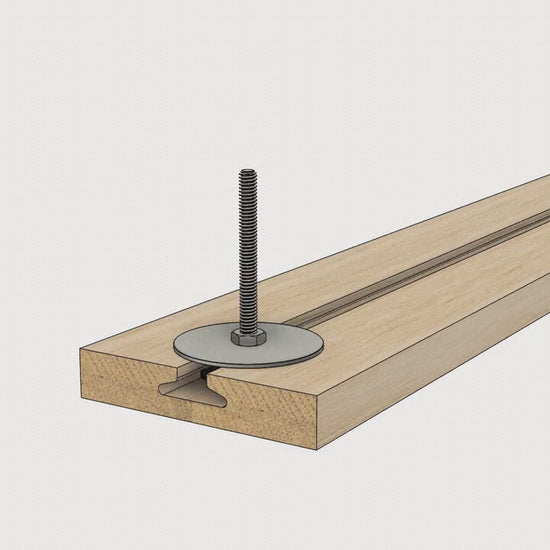

    • Fixed mounting post

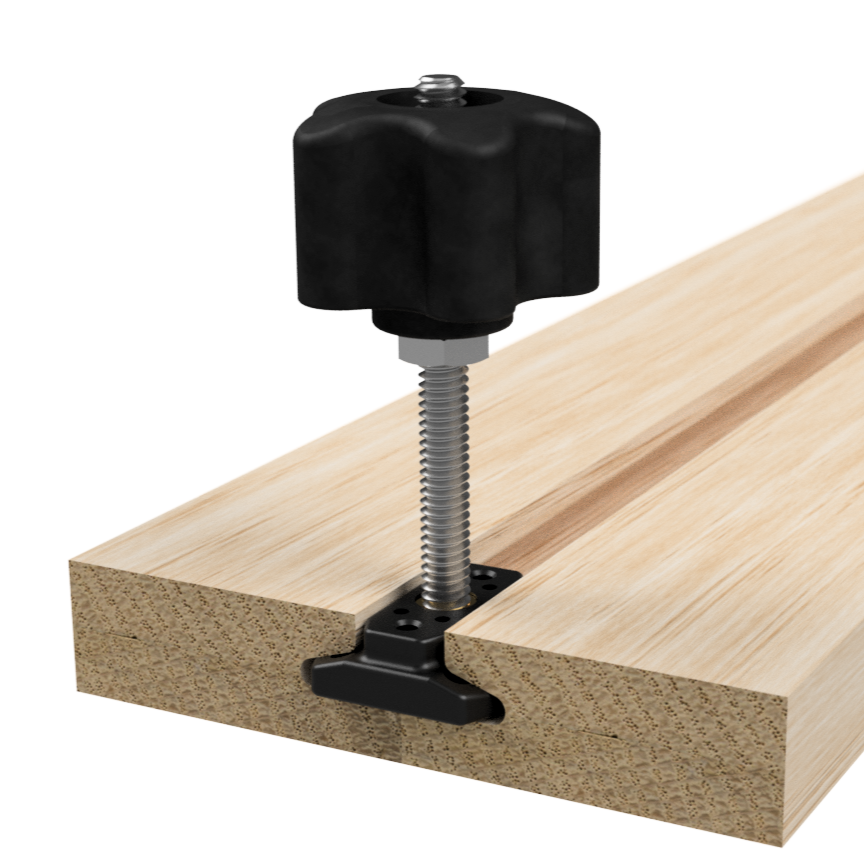

    • Male-knob assembly
  • Fixed mounting posts are ideal for knee-style hold down clamps (not included).

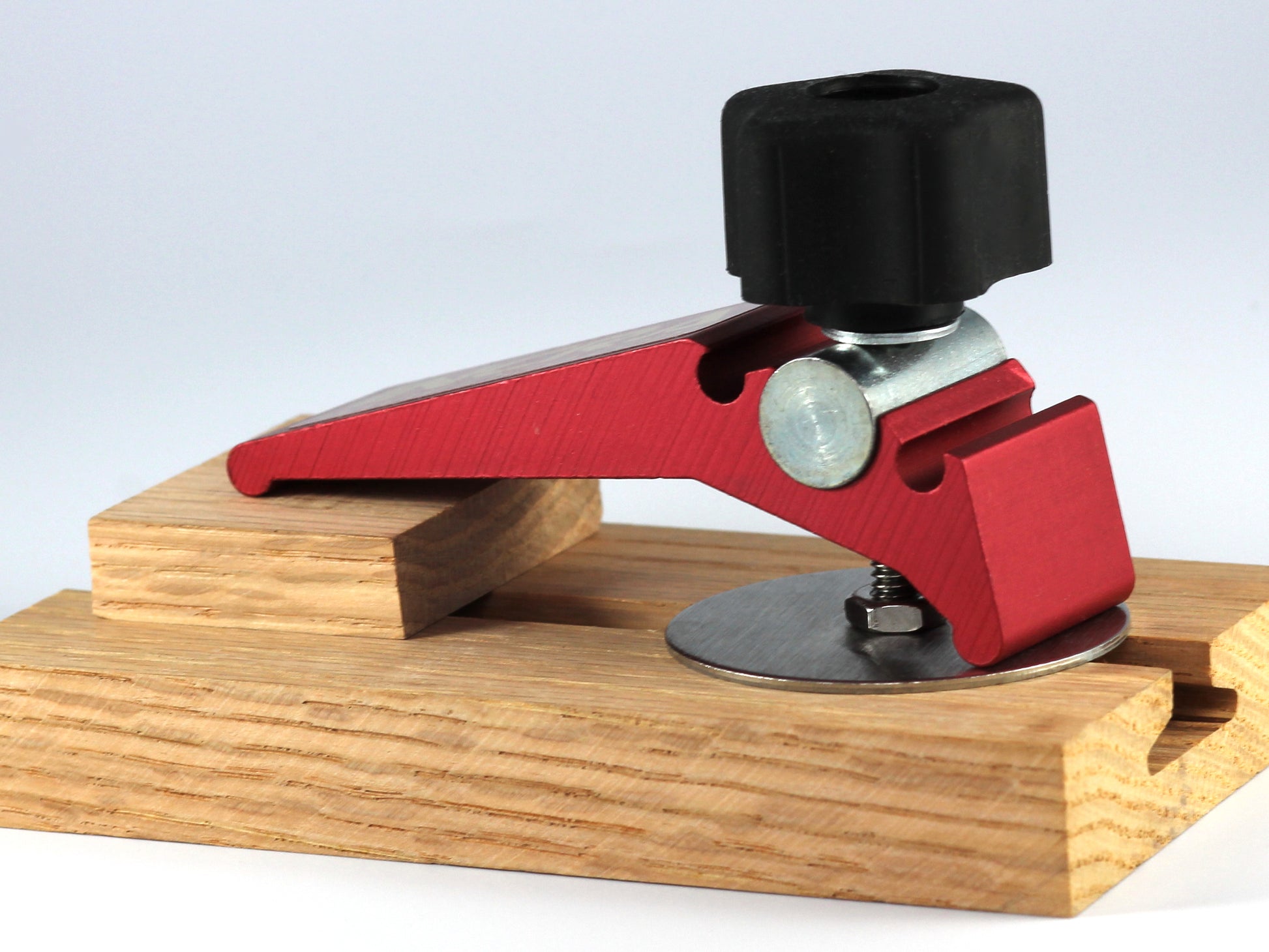

    • For low workpieces, use the 2-1/2" threaded stud and the clamp-base washer .

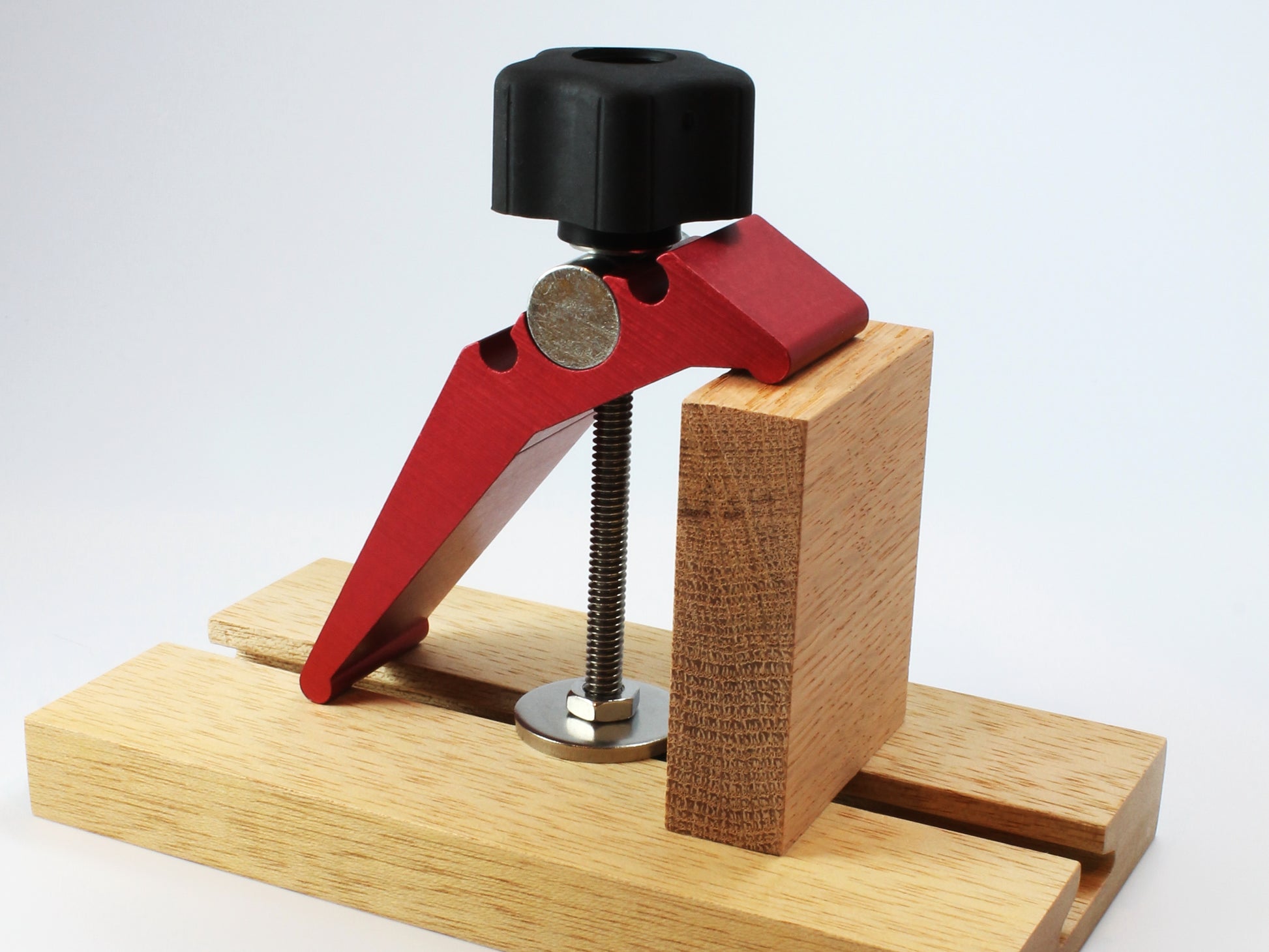

    • Reverse the clamp for tall workpieces, and use the 4" threaded stud and the load-distribution washer.

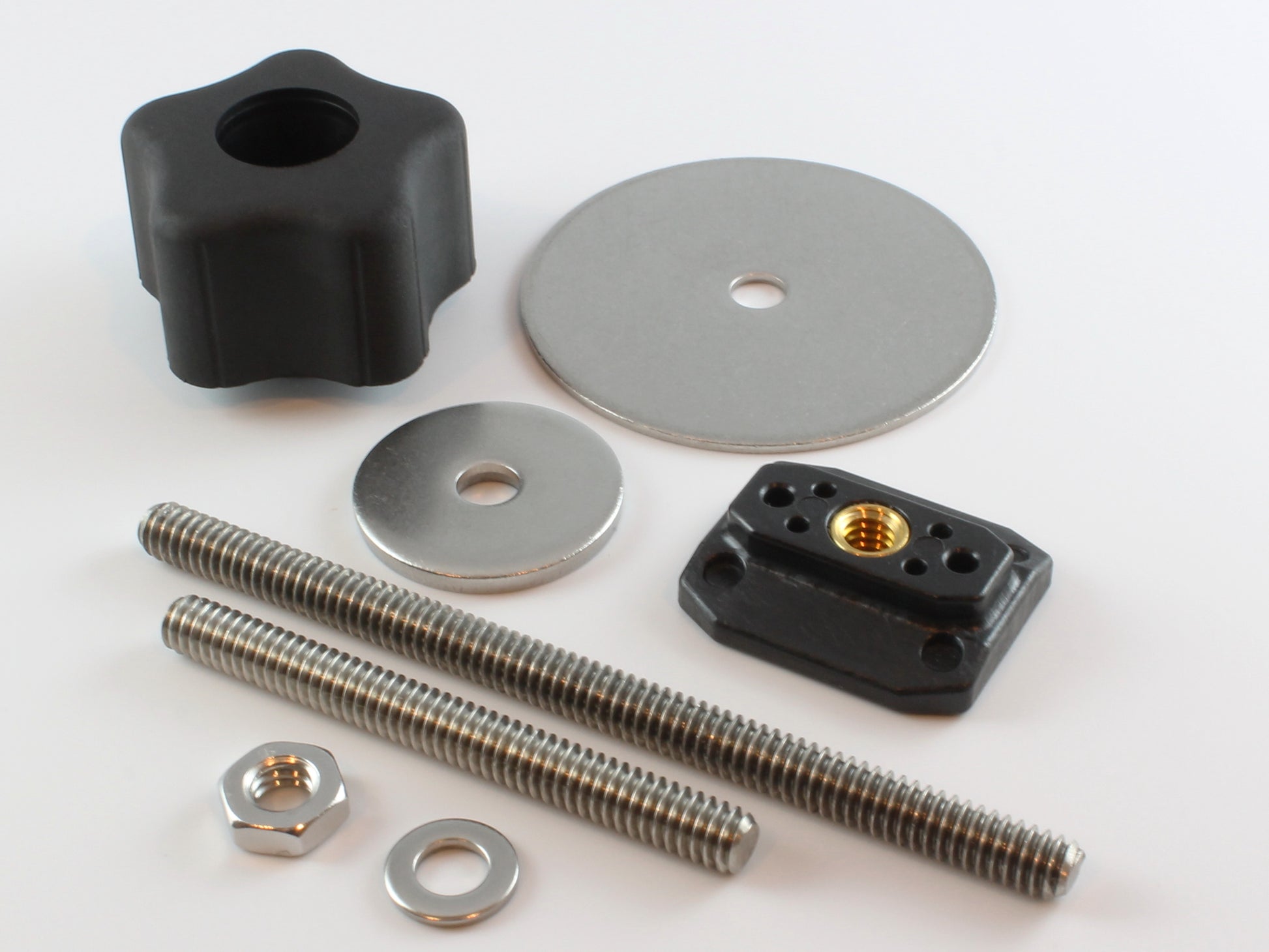

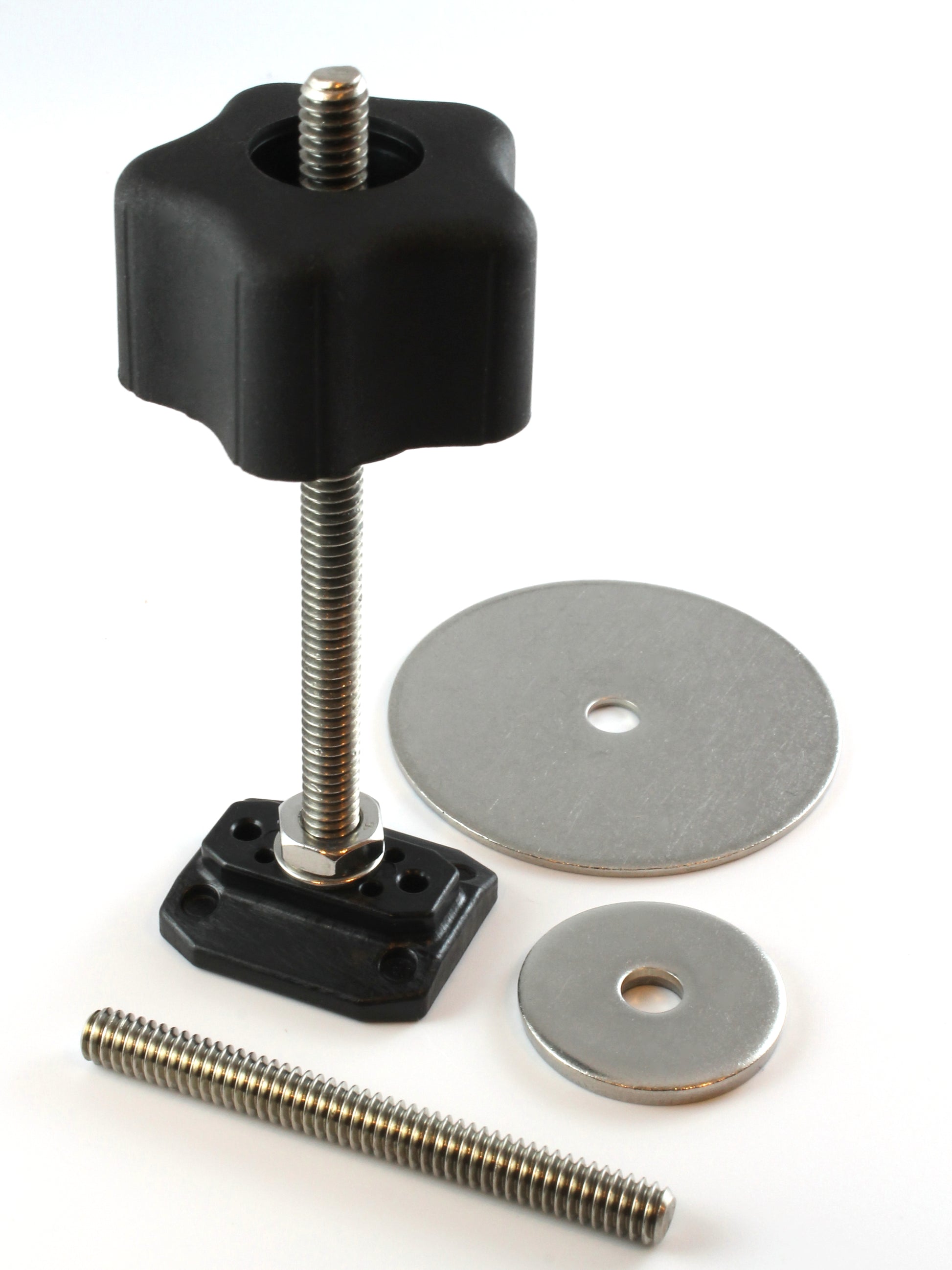

Included hardware

Description Qty Part Number
WoodAnchor sliding nut 1 KT0108
Ergonomic clamp knob, female 1 FS0115
Threaded stud, 2-1/2" long 1 FS0113-2.500
Threaded stud, 4" long 1 FS0113-4.000
Clamp-base washer, 2-3/16" OD 1 FS0112
Load distribution washer, 1-1/8" OD 1 FS0110-1.125
Fixturing-slot washer, 1/16" thick 1 FS0116-1/16
Hex jam nut 1 FS0117

Specifications

    • ToolQuest part number: KT0122
