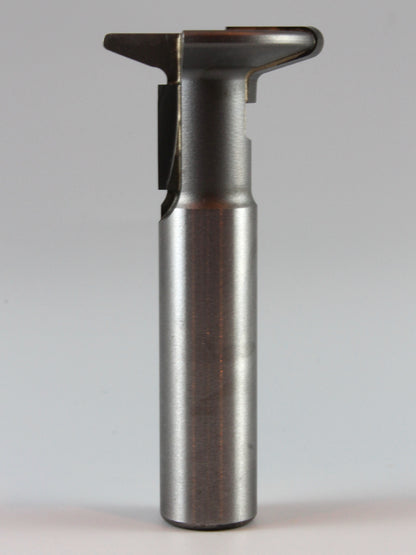

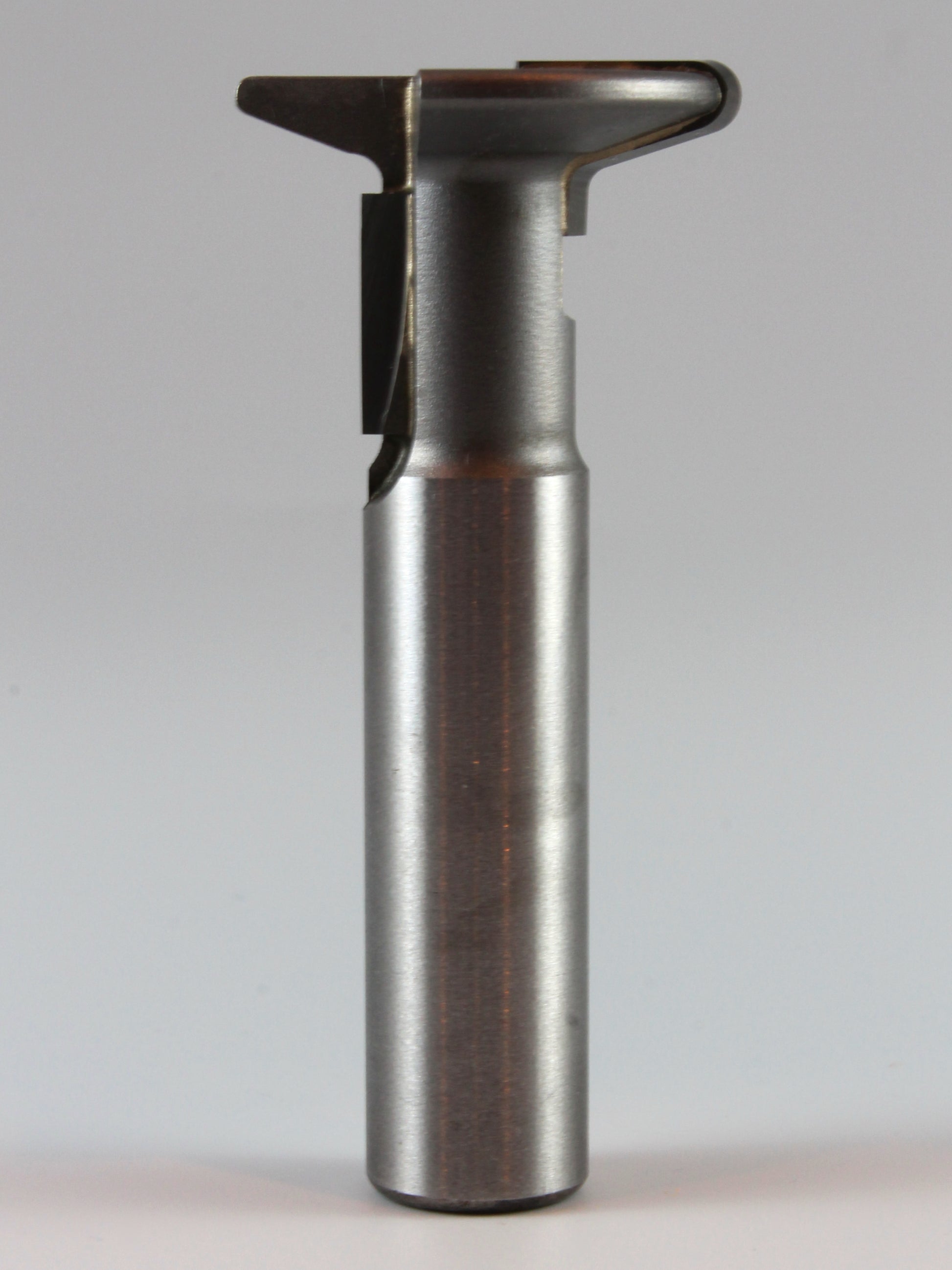

A WoodAnchor fixturing slot router bit

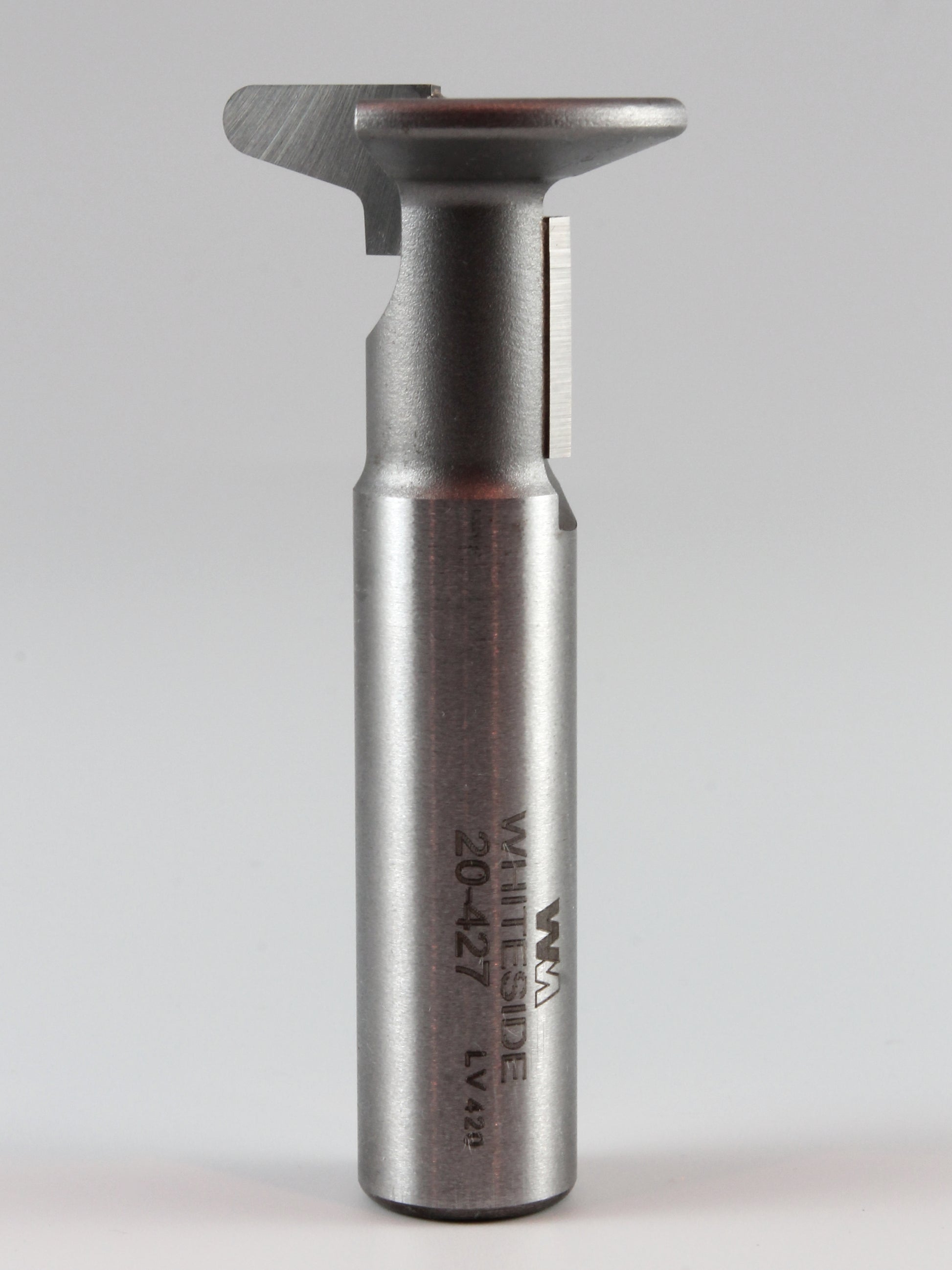

A WoodAnchor fixturing slot router bit

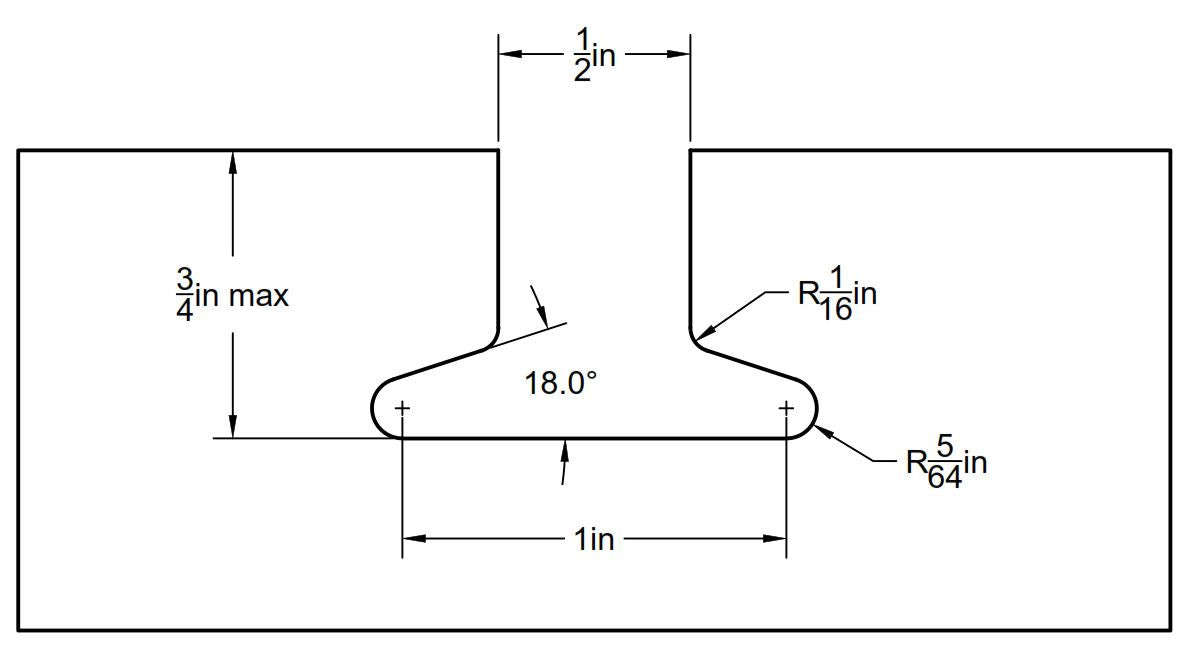

Dimensional drawing of a WoodAnchor fixturing slot profile

WoodAnchor™ fixturing-slot router bit

Regular price $79.95 $0.00 Unit price per
We’re almost ready for the WoodAnchor™ product rollout at ToolQuest.net. Be the first to know when products are available... sign up for email updates!
We'll never spam you! Unsubscribe at any time.
Please insert a valid e-mail.

Features & Benefits

  • Mill WoodAnchor fixturing slots on demand, including intersecting slots, wherever you need them.
  • The proprietary engineered profile minimizes stress concentrations, creating wood-based slots with exceptionally high load capacities.
  • All cutting edges are precision CNC-ground, micro-grain carbide.
  • An integral 1/2" small-diameter cutter ensures accurate slot openings.  Milling 3/8" or 7/16" wide starter grooves is recommended for ease of fixturing-slot routing, but is not mandatory for high-powered routers.
  • These premium industrial-grade router bits are made exclusively for ToolQuest by the Whiteside Machine Company.  In two published comparison tests, Fine Woodworking Magazine rated Whiteside router bits "Best Overall".
  • Economical resharpening service for this bit is available directly from Whiteside.
  • Made in the USA

Specifications

  • ToolQuest part number: RB0141
  • Whiteside part number: 20-427
  • Shank diameter: 1/2"
  • Overall length: 2-1/2"
  • Maximum speed: 18,000 RPM
  • Maximum depth of cut: 3/4"
  • Slot dimensions: see drawing
  • Compatible sliding nuts: KT0108

Downloads



U.S. and International Patents Pending




Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Todd Rathkamp (Wisconsin, United States)
Game Changer!

I rarely write reviews, but I feel I need to help spread the word. I'm not sure where I first saw the Woodanchor system. Wherever it was I knew it was a well-executed system that I needed to incorporate. I'm glad I did. Prior to using the system, I had designed a table to use with my CNC machine that used aluminum T-slot channels that I tried to epoxy to a sheet of MDF. I was never happy with that system for a variety of reasons.

It's been a week since I remade my tables incorporating the Woodanchor system and it's truly a game-changer. In a nutshell, EVERYTHING simply WORKS.

Thanks for providing a tool that is truly going to increase my productivity.

S
Steve H. (California, United States)
WoodAnchor Fixturing Slot Router Bit

Great bit. It is a Whiteside which says it all. Very sharp, well balanced and designed to cut a WoodAnchor slot in a single pass. I put it to the test with my CNC router water cooled spindle, Milwaukee table router and Bosch hand held router. In each case I got a nice smooth cut in a single pass with router motors ranging from 2.25 to 3.5 horsepower. I found it to work equally well in MDF, Baltic Birch plywood or fine hardwoods to include oak, maple and beech. I have probably cut over 100 feet of track and the bit still preforms as it did when it was new.

B
Brian W. (Connecticut, United States)
Slot Bit

I used the WoodAnchor fixturing slot bit to make a sliding fence for my router table. It worked perfectly and I'm very happy with the results!

Judge.me YouTube video placeholder
T
TGlenn (Arizona, United States)
A new era

Been looking to break free from the limitations of T track. This new system looks to be the answer. The nuts are a little spendy but saves the cost of an aluminum track. No limits on the length of track and excellent holding power. Bit cuts like a dream. Highly recommended.
