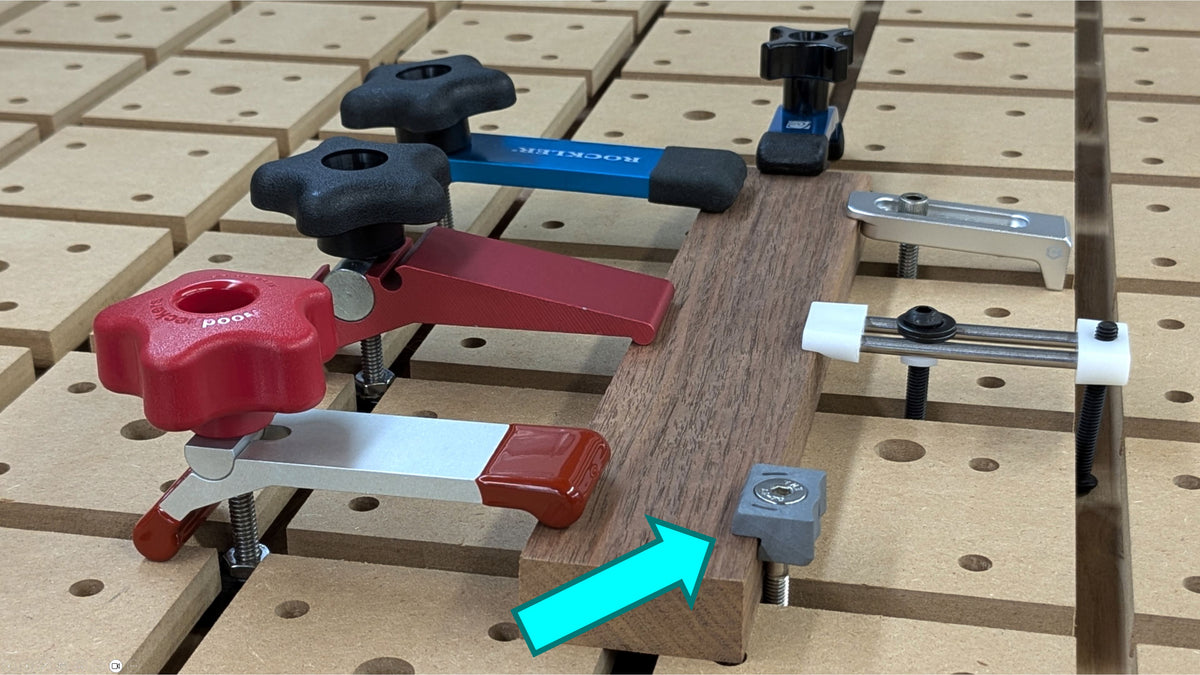

  • A diminutive EdgeHugger clamp is shown alongside several conventional hold-down clamps.

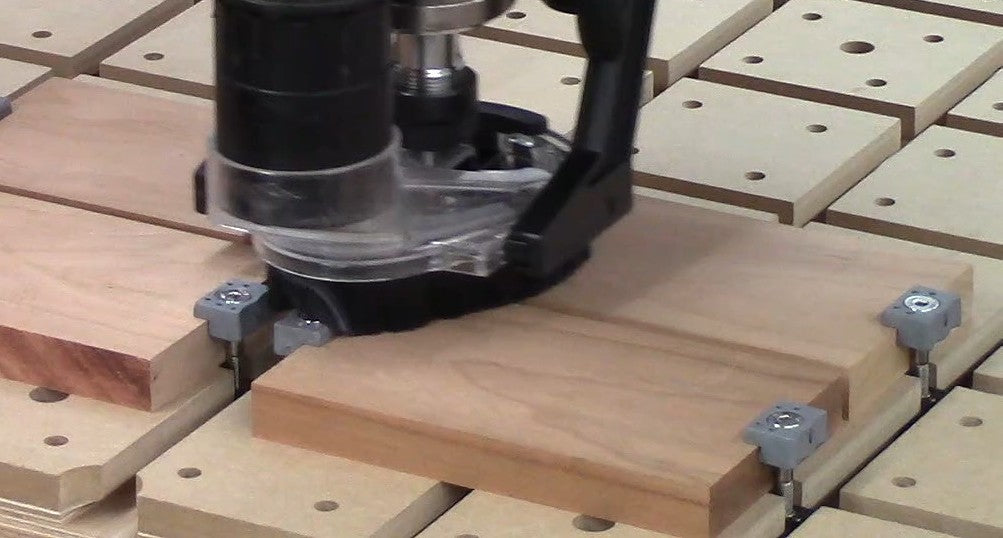

  • Dust-boot brushes sweep easily across EdgeHugger clamp heads.
  • EdgeHugger clamps are used to secure a workpiece. [Specialty]

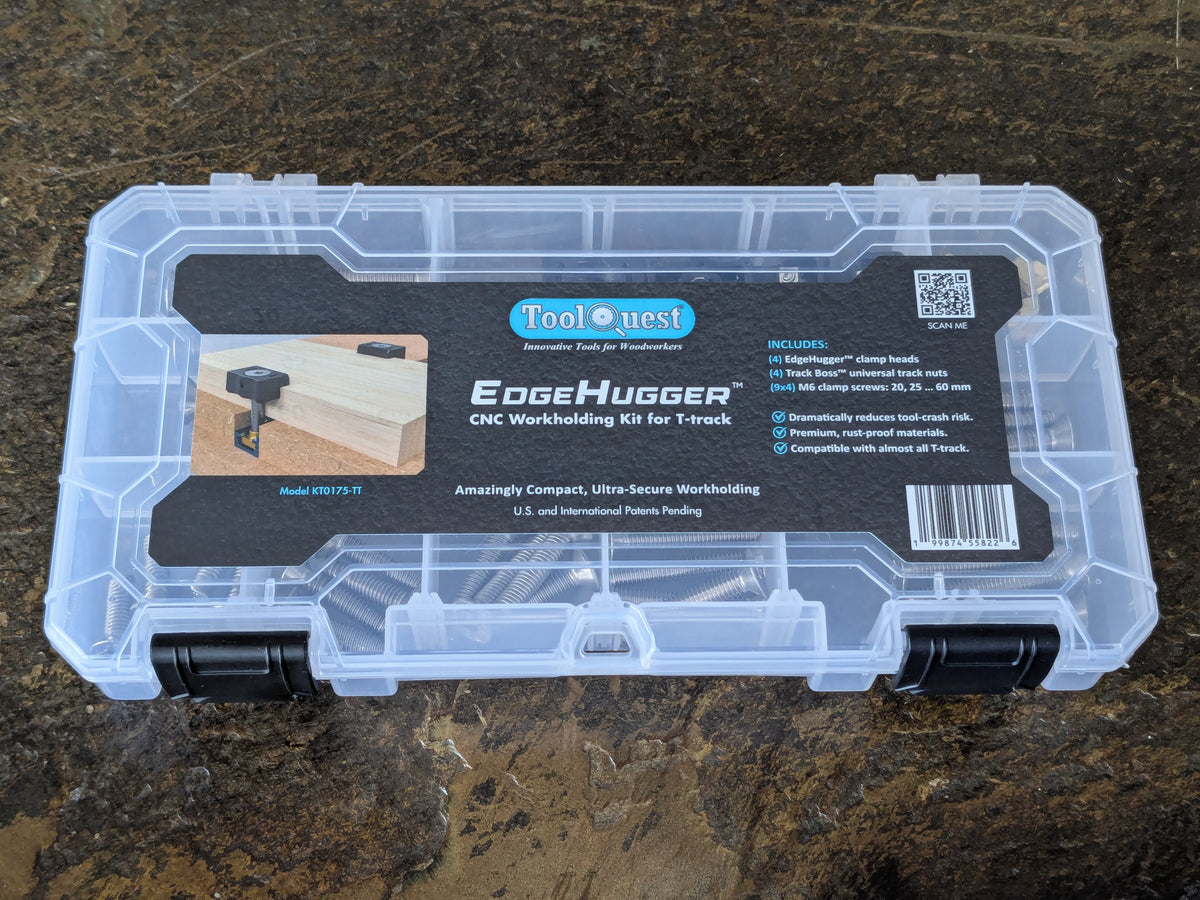

  • An EdgeHugger CNC Workholding Kit for T-track is shown with its label visible. [T-track]

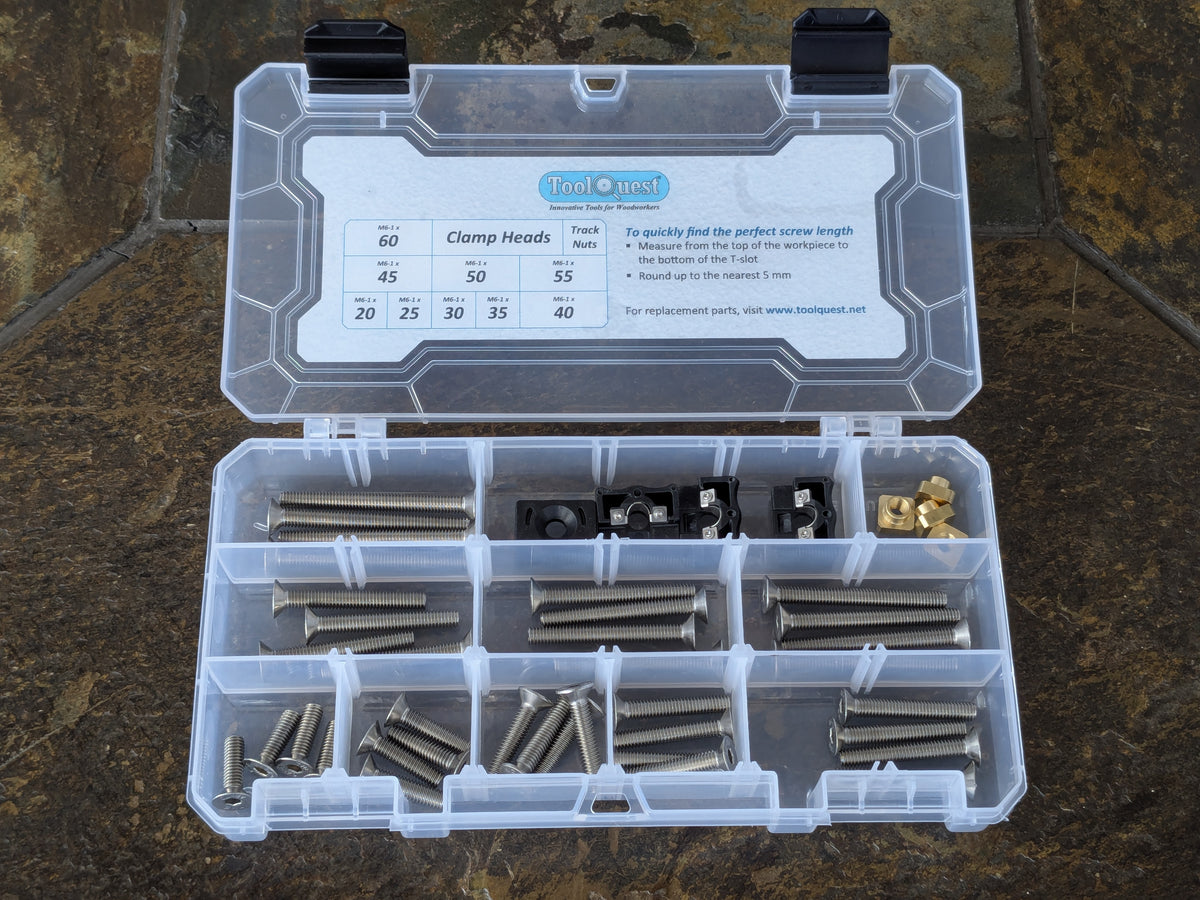

  • An EdgeHugger CNC Workholding Kit for T-track is shown with its lid open, revealing the organizer-box compartment label and the kit contents. [T-track]
1 6

EdgeHugger® CNC Workholding Kit

EdgeHugger® CNC Workholding Kit

$74.95 USD
$74.95 USD
Sale Sold out
For T-slot type

Features & benefits

  • The complete EdgeHugger® starter kit: four clamp heads, a full 36-screw set, and an organizer box that keeps every screw length in its own mapped compartment
  • Rock-solid hold-down — 250 lb (110 kg) of clamping force per clamp — with nothing sitting more than 1/4" above your workpiece
  • Glass-fiber-reinforced thermoplastic clamp heads dramatically reduce tool-crash risk: a glancing bit strike costs a scuffed clamp, not a carbide bit
  • Included screw lengths cover every workpiece thickness from 1/4" (6 mm) to 1-5/8" (42 mm)
  • Track Boss™ brass T-nuts included for standard T-track and Onefinity QCW frames — or choose "Specialty" if you already own compatible M6-1 T-nuts
  • Premium, rust-proof materials throughout
  • Assembled in the USA

Included items

Specifications

  • ToolQuest part numbers: KT0175-TT (with Track Boss™ T-nuts) · KT0175-SP (without T-nuts)
  • Rated clamping force: 250 lb (110 kg) per clamp
  • Ultimate load: approximately 1,000 lb (450 kg) per clamp
  • Clamp head width: 1" (25.4 mm)
  • Jaw height: 6 mm (0.236")
  • Jaw projection onto workpiece: 1/4" (6.35 mm)
  • Minimum workpiece thickness: 6 mm (0.236")
  • T-nut requirement: M6-1 thread, at least 3 full threads, top thread at least 8 mm (5/16") above the T-slot floor

Downloads

View IP and Patent Information

View full details

Included items

EdgeHugger® CNC Workholding Kit Part number: KT0175-TT/HS
Description Qty Part number
EdgeHugger® clamp head 4 MS0170
Track Boss™ T-nut, M6-1 4 FS0178-M6-BR
EdgeHugger® clamp screw, M6-1 x 20 mm 4 FS0174-20mm
EdgeHugger® clamp screw, M6-1 x 25 mm 4 FS0174-25mm
EdgeHugger® clamp screw, M6-1 x 30 mm 4 FS0174-30mm
EdgeHugger® clamp screw, M6-1 x 35 mm 4 FS0174-35mm
EdgeHugger® clamp screw, M6-1 x 40 mm 4 FS0174-40mm
EdgeHugger® clamp screw, M6-1 x 45 mm 4 FS0174-45mm
EdgeHugger® clamp screw, M6-1 x 50 mm 4 FS0174-50mm
EdgeHugger® clamp screw, M6-1 x 55 mm 4 FS0174-55mm
EdgeHugger® clamp screw, M6-1 x 60 mm 4 FS0174-60mm
EdgeHugger® kit organizer box 1 CT0180-18

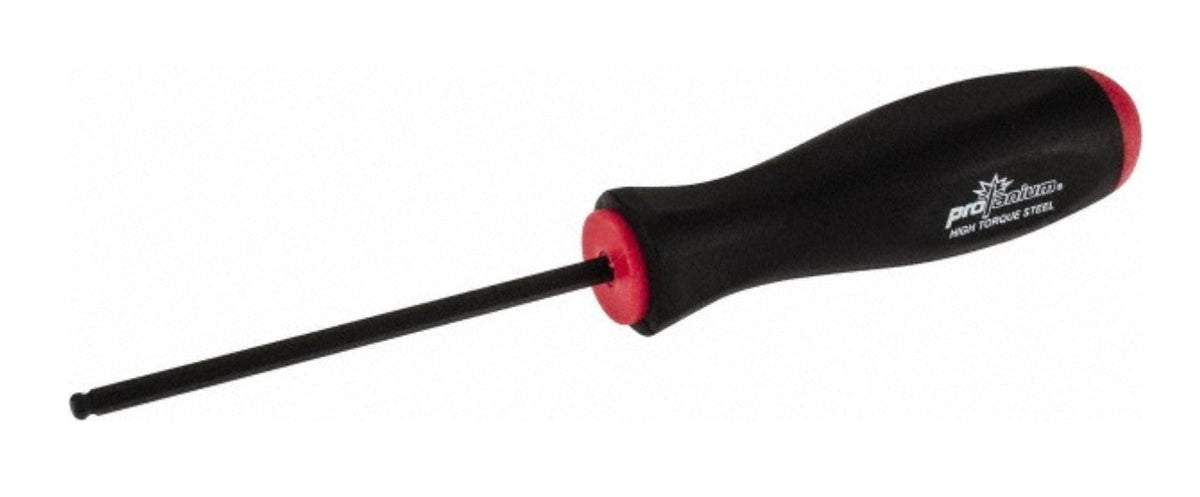

Ball end hex screwdriver, 4 mm 1 TL0179-4mm
